Icom
VE-PG4 RoIP Gateway
The VE-PG4 is a versatile RoIP (Radio over IP) network gateway
unit, which seamlessly interconnects LMR radios, LTE radios*, IP communication
terminals, IP phone systems and external devices.
In addition to the IP Network (LAN/WAN), the built-in LTE module (network
coverage provided by a custom SIM card) provides virtually nationwide
communication coverage.
The VE-PG4 includes built-in RoIP, SIP gateway, IP router, IP PBX
and IP communication terminal controller functions, in one box. In
comparison with a similar system combining several devices, installation
and administration of the integrated VE-PG4 is much simpler.
*Icom custom SIM card required for LTE systems/use. |
|
|
|
|
|
|
|
|
|
Icom

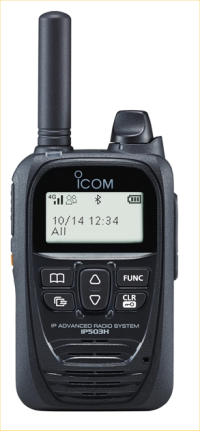

IP503H Handset
The IP503H is a small, lightweight LTE/PoC radio handset that offers
licence free nationwide coverage over the 4G/LTE network. The IP503H
is ideal for transmitting over long and short distances or areas where
conventional radio is not feasible or is too costly.
With the Icom custom SIM card, the IP503H has access to the three
leading networks within the UK. So wherever you are, you will always
be connected to the strongest signal in your area. The SIM card is
capable of roaming throughout Europe as standard at no extra charge.
The IP503H does not use the conventional radio spectrum. Coverage
is provided by the 4G/LTE and 3G network so no licence application
forms and no licence fees. The system is hosted on a fully secure
server located in the UK. |
|
|
|
|
|
|
|
|
|
IP501M/MB
Mobile
The IP501M is a new LTE/PoC mobile radio to complement Icom's IP501H/IP503H
LTE radio handheld counterpart. Designed to be installed in a vehicle,
the IP501M will provide a straight forward, easy to use communication
tool allowing drivers* with nationwide and European** PTT radio
coverage using the LTE/4G and 3G network.
Nationwide Coverage Over 3G & 4G / LTE Closed Private Network
With the custom Icom SIM card, the IP501M operates over 4G / LTE
in a closed private network. Businesses can benefit from nationwide,
European or even global coverage** without the need for repeaters
thus reducing the cost of building and maintaining a wide area network.
Users also operate on a closed, private LTE mobile data network
providing an extra level of security.
Interconnect between IDAS and IP100H Systems
With the VE-PG4 RoIP Gateway Module, the Icom LTE radio solution
will provide interoperability with a whole host of radio systems
and operating aids such as IP phones, analogue transceivers, IDAS
digital transceivers and IP100H wireless LAN network systems. In
addition, GPS positional data can be displayed on a dispatcher. The
IP501MB LTE/PoC Radio Base Station is ideal for a control room or
office, the IP501MB LTE base station allows a dispatcher to communicate
with their team via the Icom LTE network wherever they are be it
in the next town or the other side of the country.
Housed in a smart enclosure with power supply, the IP501MB, together
with Icom's LTE dispatcher software provides an impressive
communication solution and management tool for any business.
* Guidance about the use of radio equipment
in vehicles can be found on Icom's website: The
Use of Two Way Radio Equipment in a Vehicle
** Network roaming charges may apply, check with Icom UK first.
|
|
|
|
|
|
|
|
|
|
RMS-IP
Dispatcher Software
RMS-IP is a powerful IP based PC dispatcher that not only allows you
to manage your Icom LTE radio network but also serves as an additional
virtual radio on your system. RMS-IP enables a controller to communicate
with your team, monitor all radio activity in real-time and ultimately
manage your day to day business issues more efficiently. As part of
Icom's LTE radio system, RMS-IP provides an important addition to
your licence free, nationwide, full-duplex communication network.
RMS-IP radio dispatcher is a 'Virtual Radio' which can be
configured to work with Icom's range of LTE handheld and mobile
radios. The voice dispatcher can be used to make calls on talk groups
or individual calls to specific units as well as send 24-character
long text messages to the physical radios.
RMS-IP allows you to monitor and keep in touch with your
team from a PC. It will also log and store recordings of all radio
traffic as well as GPS history and provide a variety of security
features, such as emergency alarm and emergency SMS and email.
The Voice Dispatcher functions like a traditional radio system.
Use a headset to allow you to communication with your team.
All data gathered by the portal (Recordings, GPS History)
is sorted on our cloud servers for easy access from anywhere any
time.
|
|
|
|
|
|
|
|
|
|
VE-SP1
Conference Desk Speaker
Icom has introduced a new desktop conference speaker microphone
for its growing range of LTE/PoC radios. The VE-SP1 desktop speaker
microphone is easy to activate; just place the IP501H/IP503H in
the slot and start a voice conference with your team . . . wherever
they are!
Features include:
Compact and easy to get started. Literally, plug and play.
Built-in loudspeaker with high sensitivity microphone.
Charges the IP501H during a voice conference.
Portable operation with LR6 (AA) (B8 cells).
Ideal for conferencing with your team.
Suitable for control rooms, CCTV rooms etc.
The VE-SP1 is supplied with OPC-2397 connection
cable, BC-242 AC adapter and SM-1 external microphone.
NB; IP503H Radio sold separately.
|
|
|
|
|
|
|
|
